3 gallon 5 gallon barrel bottle water production line capacity is optional from 100 b/h to 2000 b/h. It includes automatic de-capping, internal and external barrel brushing/rinsing, barrel elevator, filling, capping and heat shrinking, etc.
3 Gallon 5 Gallon Barrel Bottle Water Production Line Description

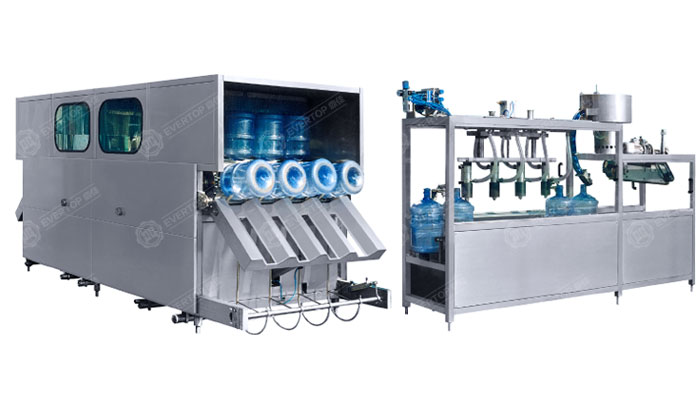

3 gallon 5 gallon barrel water production line capacity is optional from 100b/h to 2000b/h. It includes automatic de-capping, internal and external barrel brushing/rinsing, barrel elevator, filling, capping and heat shrinking, etc. The barrel water filling machine has the characteristics of complete functions, novel design, and high degree of automation. It is a new type of drinking water barreling equipment that integrates machinery, electricity and gas.
3 Gallon 5 Gallon Barrel Bottle Water Production Line Detail
When the bottle has a cap, the cap can be easily removed, if there is no cap, the empty bottle is passed directly to the bottle leak detector.
The automatic barrel brushing machine is specially used with the 3-5 gallon bottled water production line. The brushing machine is used to reduce the sedimentation caused by itself and some algae substances during the water production process.
3 Gallon 5 Gallon Barrel Bottle Water Production Line Parameter| Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Production Capacity(B/H) | 100-150 | 250-300 | 400-450 | 600 | 900 | 1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 9 |
| Machine type | Liner type | Liner type | Liner type | Liner type | Linear type | Rotary type |
| Filling capacity(L） | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel specification | Ф270 * 490 mm | |||||
| Air source pressure(MPa) | 0.4-06 | |||||
| Air consumption(m3/min) | 0.35 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 |
| Total Power(Kw) | 2.9 | 3.5 | 4.3 | 6.2 | 8.7 | 9.5 |
| Overall Dimensions(L×W×H)(m) | 2.6×0.65×1.55 | 3.9×1.5×1.7 | 3.9×1.775×1.7 | 3.9×2.05×1.7 | 4.2×1.86×2.2 | 2.56×2.35×2.2 |
| Total Weight(Kg) | 800 | 1500 | 2000 | 2500 | 3000 | 3500 |
