This bottle fruit juice filling machine is an indispensable part of the production of juice drinks. It is also suitable for tea, milk, yogurt, wine, vinegar and other beverages. And this machine adopts bottle neck transmission to realize automatic rinsing, filling, capping into one unit. It is the one the most popular and advanced mono-block filling machine at present. It is ideal equipment for beverage factory.
Bottle Fruit Juice Filling Machine DescriptionThis bottle fruit juice filling machine is an indispensable part of the production of juice drinks. It is also suitable for tea, milk, yogurt, wine, vinegar and other beverages. And this machine adopts bottle neck transmission to realize automatic rinsing, filling, capping into one unit. It is the one the most popular and advanced mono-block filling machine at present. It is ideal equipment for beverage factory.
Strong flexibility: The production line can be quickly adjusted and optimized according to different product needs and market changes to meet diversified production needs.
Energy saving and environmental protection: The production line pays attention to energy saving and environmental protection in the design and production process, and uses energy-saving equipment and environmentally friendly materials to reduce energy consumption and environmental pollution.

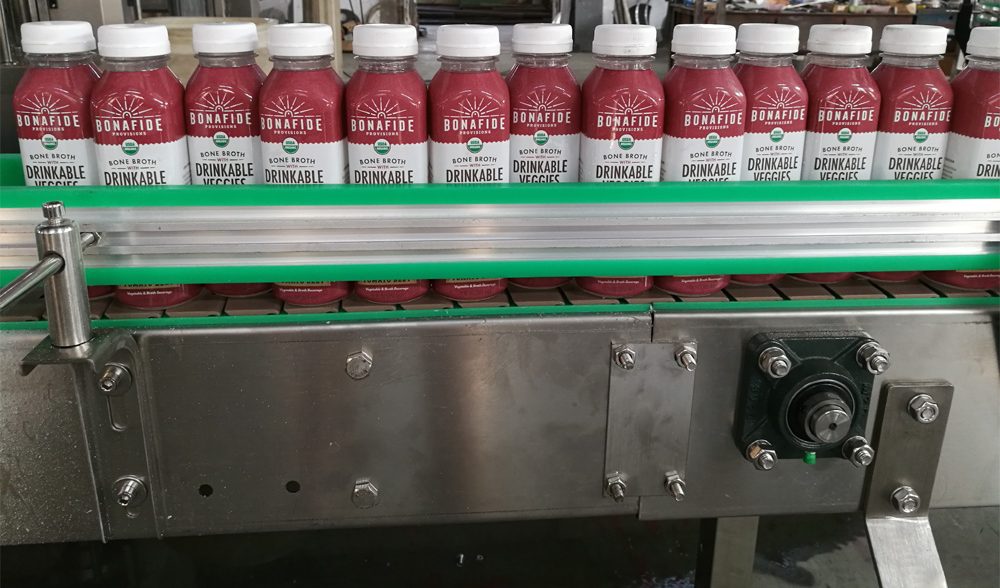

Bottle Fruit Juice Filling Machine Detail1. Bottle feeding way is air conveyor direct connection with bottle dial.

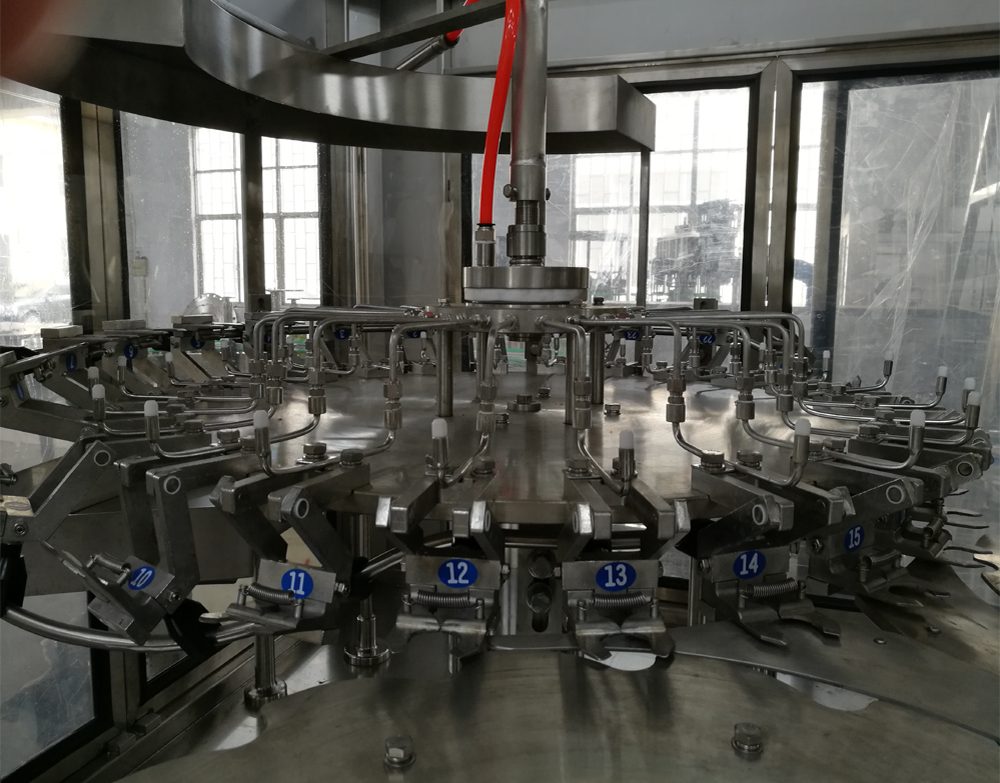

2. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
3. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
4. 304/316 stainless steel washing pump make the machine more durable.

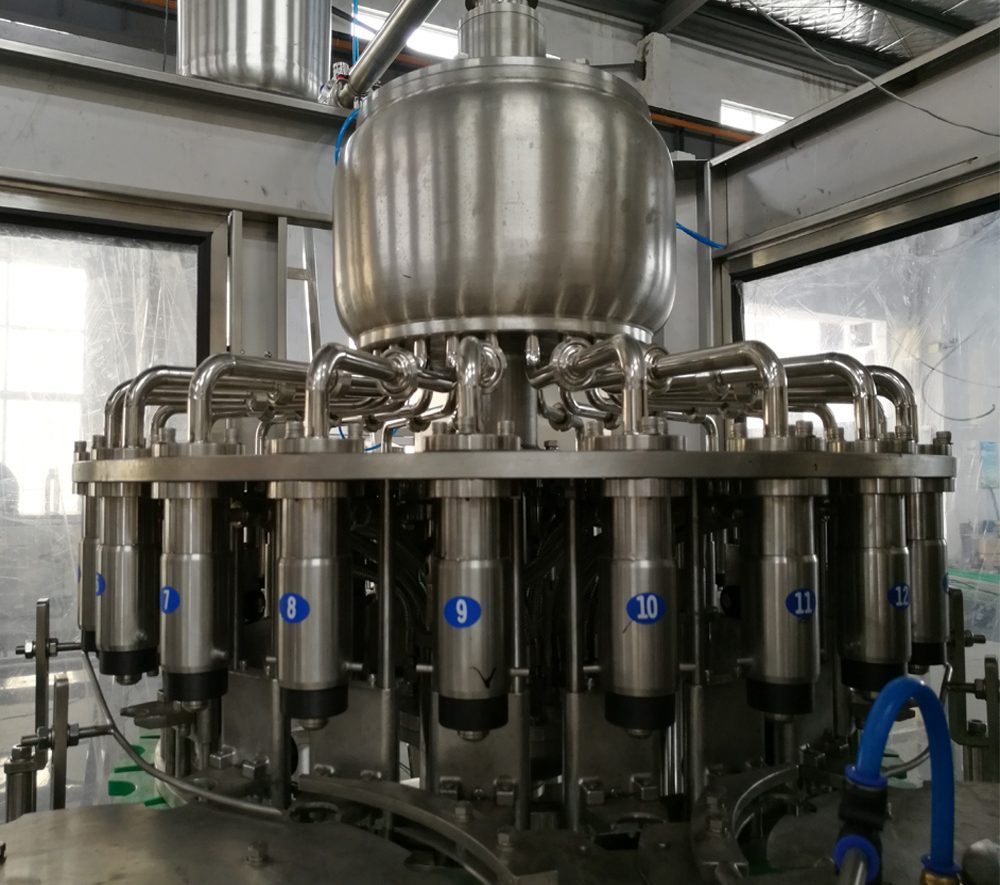

1. 304/316 Stainless steel high precision filling nozzle.
2. Filling volume adjustable in fine rank, same liquid level after filling.
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
4. 304/316 stainless steel filling pump.
1. Capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
2. All 304/316 stainless steel construction.
3. No bottle no capping.
4. Automatic stop when lack of bottle.
5. Capping effect is stable and reliable. Defective rate ≤0.2%.
Bottle Fruit Juice Filling Machine Parameter| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 |
| Production Capacity(500ml)(b/h) | 3000-4000 | 5000-6000 | 8000-12000 | 12000-16000 |
| Total Power(kw) | 3.5 | 4.5 | 5.2 | 6.2 |
